Quick Details

Place of Origin: China

Brand Name: Oneinch

Model Number: AM40EV00001

Usage: Magnetic Sensor

Output: Redundant output

Theory: Angle sensor

Mechanical angle: 360°

resolution (chip): 12

Accuracy (chip): 10

Working voltage: DC: 5V

Max speed: 10000rpm

Mechanical behavior: >4KΩ

Working temperature: -40°~85°

Allowable max speed: -40°~90°

Protection class: IP65

Supply Ability: 30000 Piece/Pieces per Month

Production Description

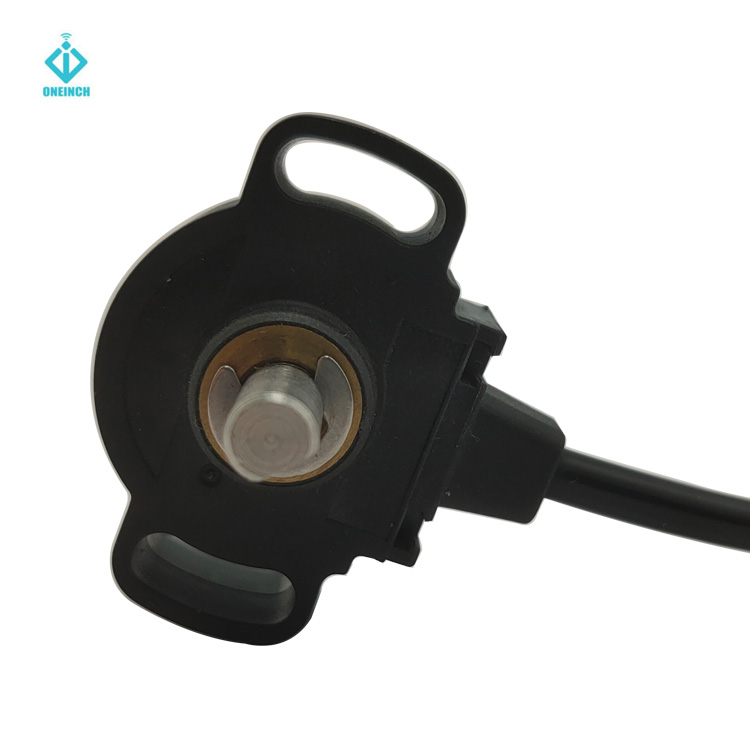

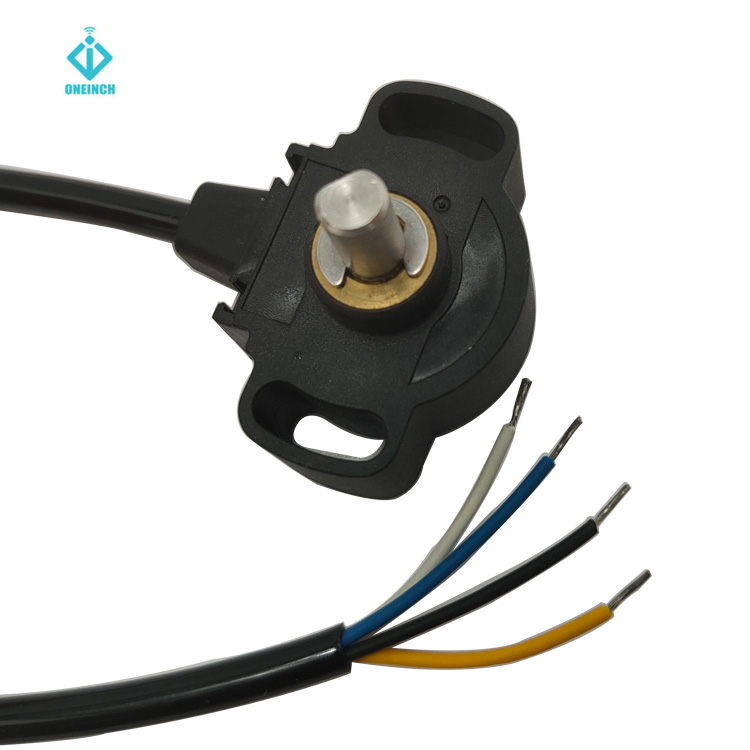

DSP intelligent signal processing electronic angle sensor


Features:

The angle sensor is made with a high-performance integrated magnetic components, uses the non-contact

magnetic sensing, and a microprocessor (DSP) for intelligent signal processing to produce a new generation 360°

full-scale angle sensor which with programmable selected measurement range. It has high resolution, good

temperature stability, etc. It is excellent in cost performance and is widely used in forklifts, textile machinery,

metallurgy, shipbuilding, chemical industry, petroleum and other fields.

Parameters

Applications

1. Automobile, energy vehicles, car
2. Aerospace, aviation, radar
3. Robots, metallurgical mechinary, textile mechinary
4. Automation equipment
