Quick Details

Place of Origin: China

Brand Name: Oneinch

Model Number: GM15CV00001

Type: Speed Sensor

Car Make: different vehicles

Warranty: 12 Months

Work temperature: -30°~+120°C

Storage temperature: -40°~+120°C

Impedance (@100Hz): 620Ω ±10%

Inductance (@100Hz): 480mH±10%

Sensing (air gap): 0.15mm~1.5mm

Frequency: 20~250Hz

Low currency: 5.0~8.4mA

High currency: 11.8~16.8mA

Sensor material: PA66+GF30%

Supply Ability: 50000 Piece/Pieces per Month
Production Description

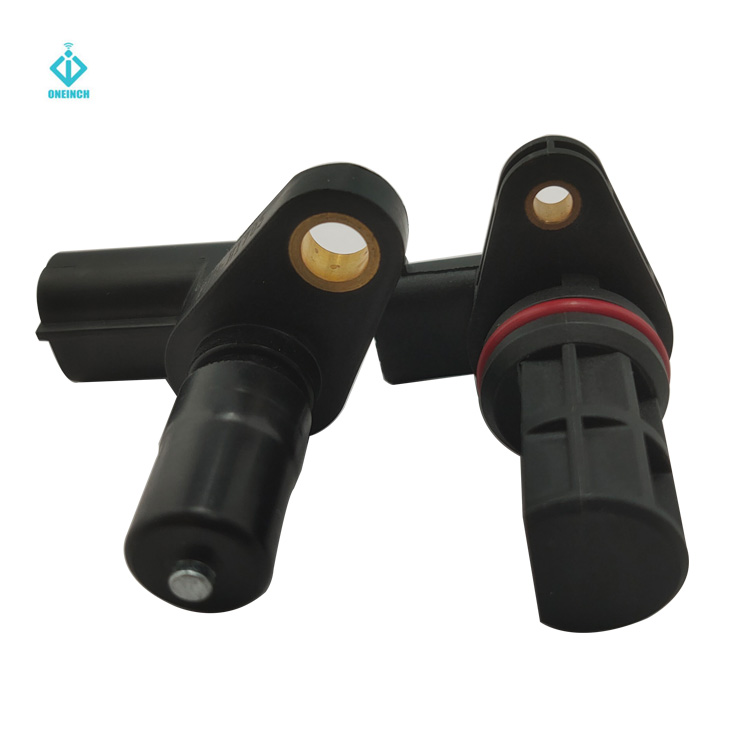

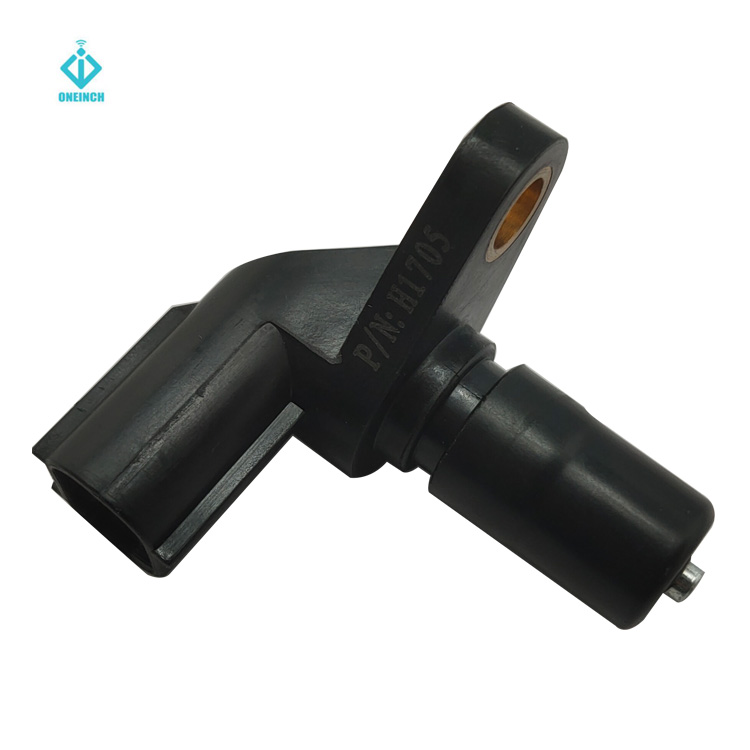

High resolution car speed sensor



Features:

The vehicle speed sensor is designed for automobile engines, gearboxes and transfer cases. The sensor

uses magnetic sensitive components to sense the position of the gears, detects he position (tooth, groove)

and rotational speed and position of the gears made of magnetically conductive materials. The product has

high resolution, high frequency response, non-contact measurement, output standard square wave and current

signal, high protection level and good temperature resistance, and is widely used in the automotive field.

1. No obvious scratches on the appearance, smooth plastic surface, uniform color, no obvious depression,

bubbles, cracks, etc.
2. No loose parts after assembly

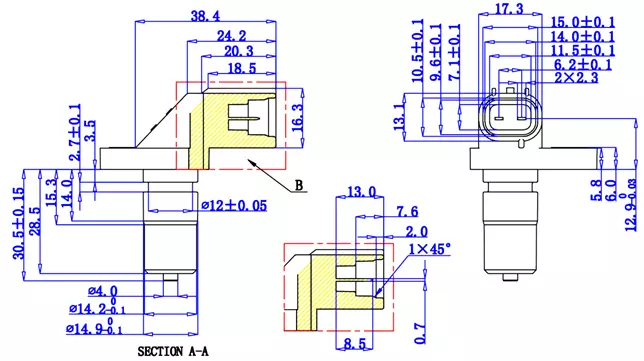

Parameters



Applications
Automobile, energy vehicles, car
