Quick Details

Place of Origin: China

Brand Name: Oneinch

Model Number: HMEX40C0017

Usage: Magnetic Sensor

Output: Square wave

Theory: Inductance Sensor

Max speed: 14600 rpm

Output TTL: Complementary output (CMOS TTL)

Output signal: ABI Incremental pulse

Output drive power: 15mA (Vcc=5V)

Duty cycle: refer to ABI protocol

Resolution: 0.01°

Output Hi-TTL: 3.5±0.5V

Output Lo-TTL: ≤0.7V

Accuracy: 1.0°

Supply Ability: 50000 Piece/Pieces per Month
Production Description

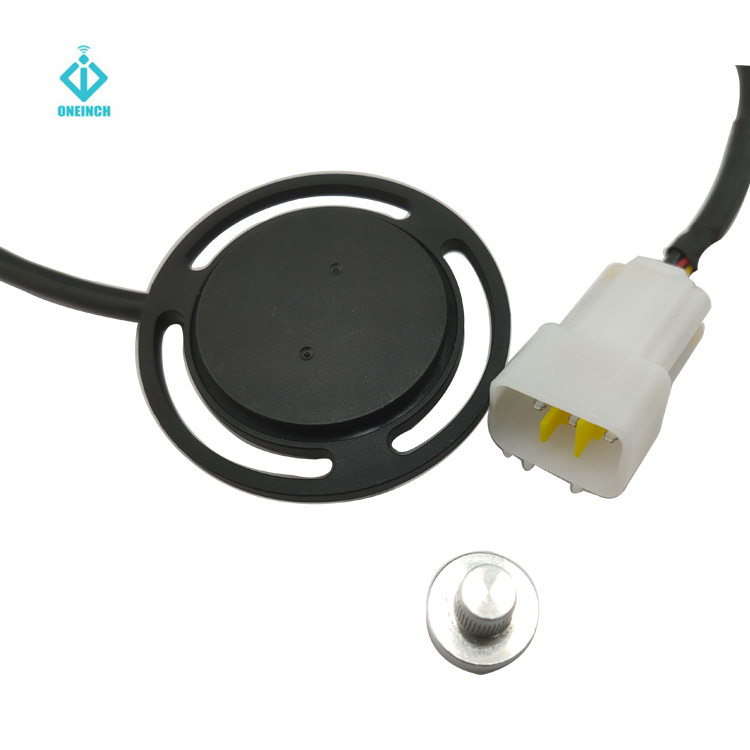

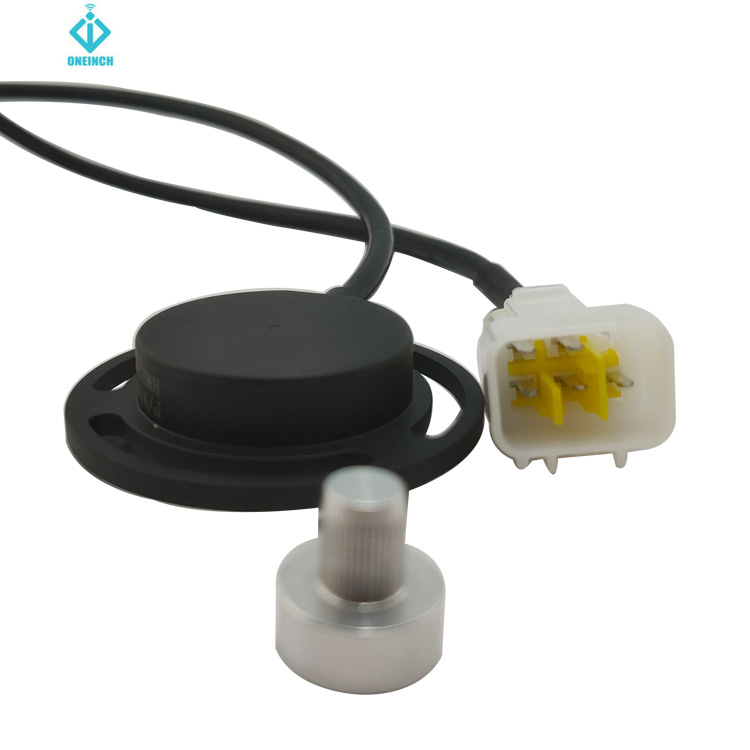

Advanced permanent magnet synchronous motor encoder


Features:
Permanent magnet synchronous motor encoders mainly use Hall or giant magnetoresistance components to

detect the change of the magnetic field caused by the rotating magnetic steel. Through analog signal

processing, the absolute position of the motor shaft is finally measured by ABZ or PWM. It can be used

on permanent magnet synchronous motors, or it can also use the output AB quadrature two-way pulse for

asynchronous motors. The shell is made of special materials and has the advantages of high strength and

good temperature resistance. The main advantages are:

Adopt international advanced technology to completely replace imported products
Maximum speed up to 14600rpm
Plastic with flanged mounting housing for easy access
The product complies with the RoHs standard
Protection class IP67
Different sizes and performance parameters can be customized

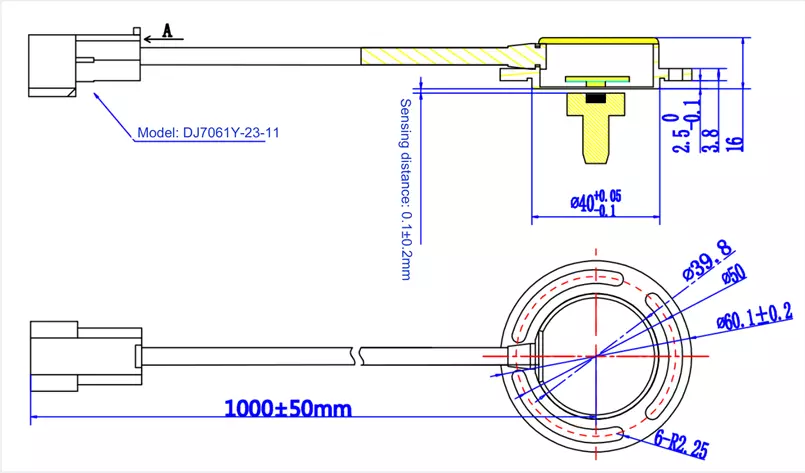

Parameters

Applications

1.Automobile, energy vehicles, car
2.Aerospace, aviation, radar
3.Robots, metallurgical mechinary, textile mechinary
4.Automation equipment
