Pressure transmitter

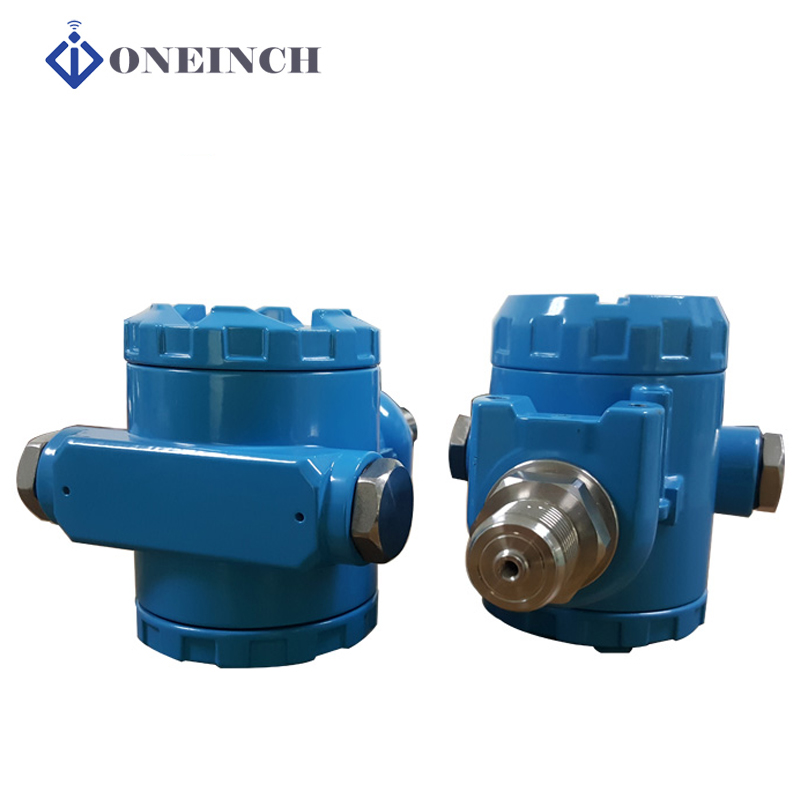

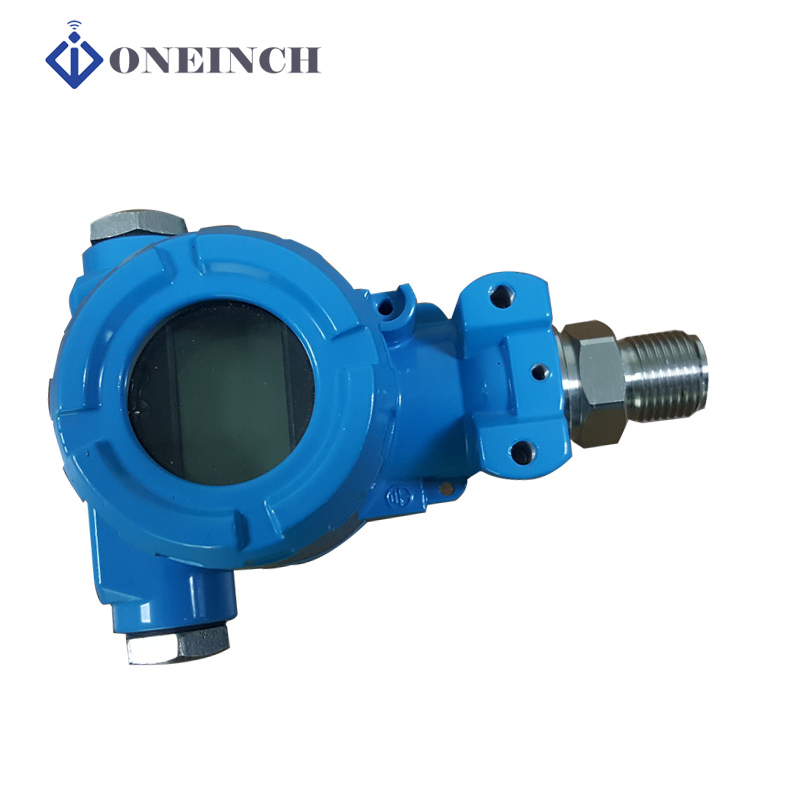

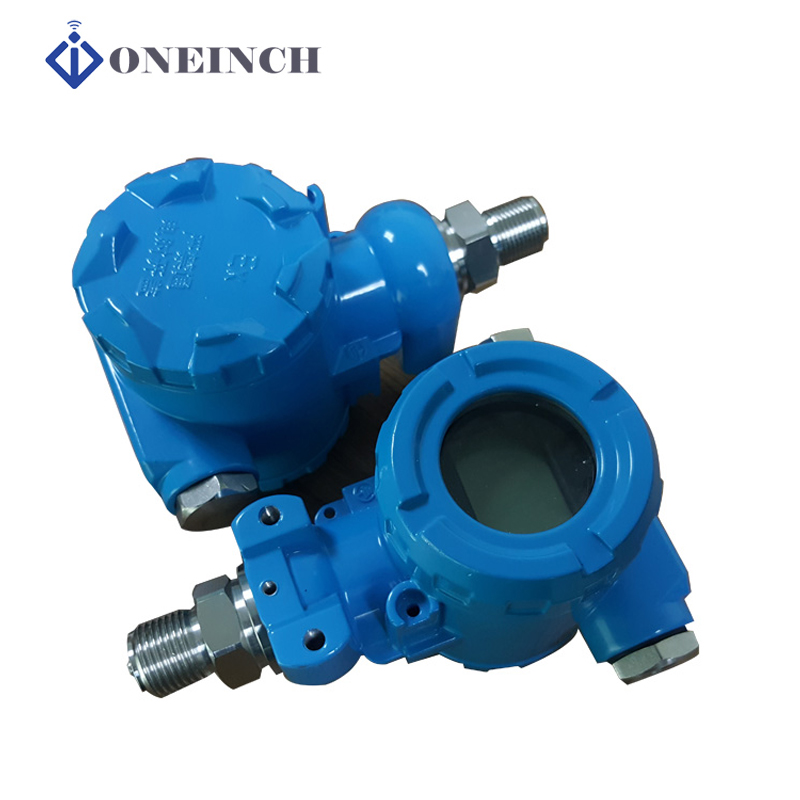

fully digital signal processing explosion proof usb pressure sensor
fully digital signal processing explosion proof usb pressure sensor
Wechat consulting
Details
Place of Origin:Guangdong, China (Mainland)
Brand Name:Oneinch
Model Number:OPT-2
Pressure range:-0.1~250MPa
Output:4-20mA/0-5V/switch/communication
Accuracy:0.25%FS
Pressure type:Gauge Pressure Absolute Pressure
Power supply:12~36VDC
Working Temperature:-20~60°C
Overload Pressure:300%FS
Stability:0.25%FS/ Year
Pressure Port:M20*1.5, G1/2, G1/4, 1/4NPT or customize
Features:
4-digit half LCD display, button settings, easy and convenient
Multiple output options (voltage, current, digital, HART)
Display range can be set freely, multiple units are available
Fully digital signal processing, stable and reliable RS485/RS232 interface (up to 255 nodes)
Online software can be used to correct zero point, full scale
Suitable for large-scale data acquisition and automation control systems
Supporting host computer data processing software optional
Parameters
|
Measurement Range |
-0.1~250MPa |
|
Pressure type |
Gauge, absolute |
|
Output signal |
4~20mA/ 0~5V/Switch/Digital |
|
Display |
4 1/2 digital LCD or 4 digital LED |
|
Accuracy (%FS) |
±0.1%(Mini) ±0.25%(Typical)±0.5%(Max.) |
|
Nonlinearity (%FS) |
≤0.1 (Typical) ≤0.25 (Typical) ≤0.25 (Max.) |
|
Hysteresis (%FS) |
≤0.1 (Typical) ≤0.25 (Typical) ≤0.25 (Max.) |
|
Repetition (%FS) |
≤0.1 (Typical) ≤0.25 (Typical) ≤0.25 (Max.) |
|
Stability |
≤0.25 |
|
Temperature Error- Zero (%FS/℃) |
≤0.02 |
|
Temperature Error –Span (%FS) |
≤0.02 |
|
Ambient temperature |
-20℃~60℃ |
|
Impedance |
Adjustable |
|
Power supply |
12~36V (standard 24V) |
|
Overload (%) |
300 |
|
Life |
9 Millions pressure cycles |
|
Load impedance (Ω) |
≤750 |
|
Response time (ms) |
≤1 |
|
Measuring material |
Compatible with 316L |
|
Housing material |
1Cr18Ni9Ti |
|
Diaphragm material |
316L or ceramic |
|
Pressure port |
M20×1.5 G1/2, G1/4, 1/4 NPT or customize |
|
Protection |
IP66 |
|
Weight |
950g |
Applications
1. Power system of petrochemical industry
2. Hydraulic / pneumatic system
3. Energy and water treatment system
4. Automation equipment
5. Industrial process control
