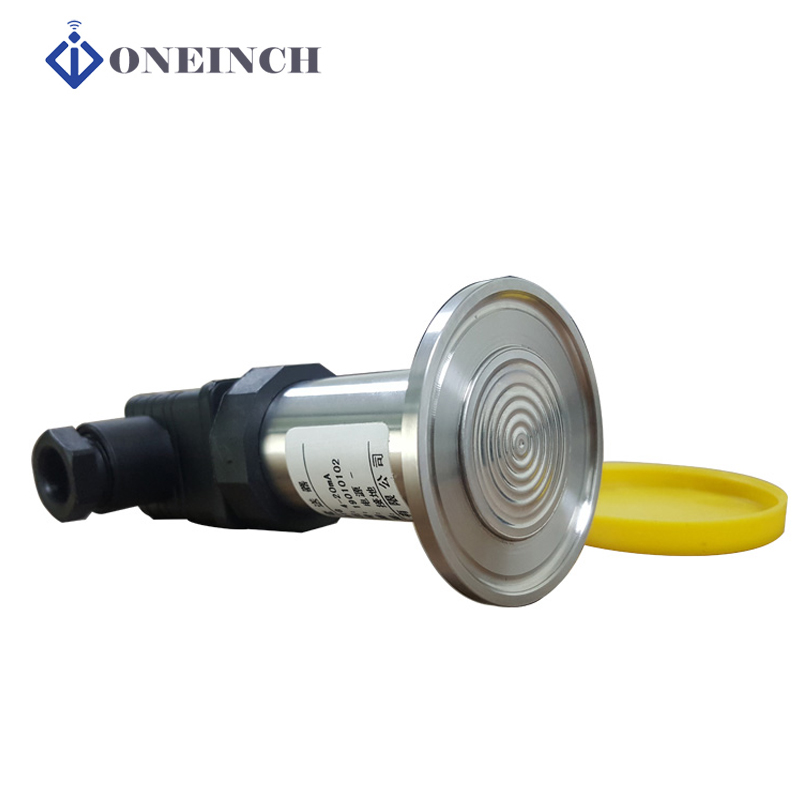

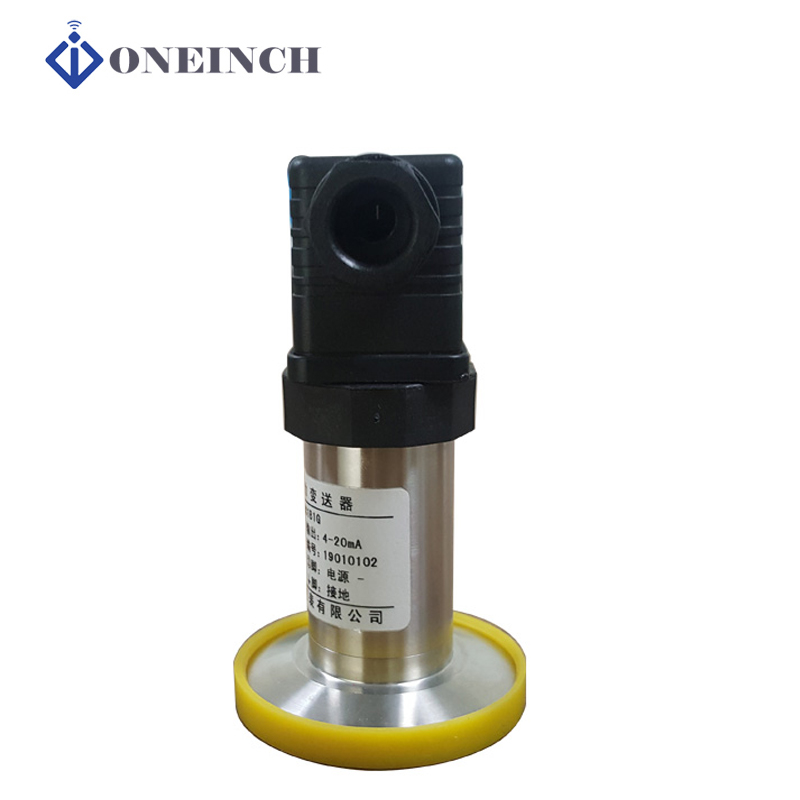

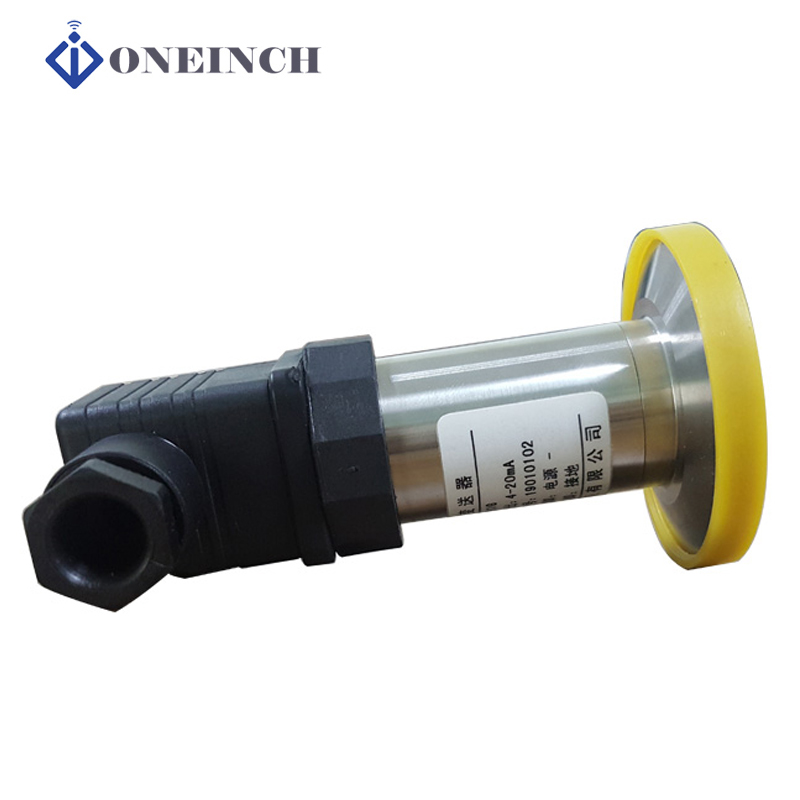

-0.1~60mpa flat diaphragm low cost differential pressure sensor for viscous liquids

Wechat consulting

Consult now +86 13923792185 返回

Details

oneinch flat diaphragm water low cost differential pressure sensor

Place of Origin:Guangdong, China (Mainland)

Brand Name:Oneinch
Model Number:OPT-9
Pressure range:-0.1~60MPa
Output:4-20mA/0-5V/switch/communication
Accuracy:0.25%FS
Pressure type:Gauge Pressure Absolute Pressure
Power supply:12~36VDC
Working Temperature:-20~60°C
Overload Pressure:200%FS
Stability:0.25%FS/ Year
Pressure Port:fast clamp

Features:
Flat diaphragm junction design is especially suitable for viscous liquids
Quick installation
Easy to clean
Suitable for hygienic environment

Parameters

Measurement Range	-0.1~60MPa
Pressure type	Gauge, absolute
Output signal	0~5V, 0~10V, 1~5V, 4~20mA, 0~20mA
Accuracy (%FS)	±0.1% ±0.25% ±0.5%
Nonlinearity (%FS)	≤0.2
Hysteresis (%FS)	≤0.2
Repetition (%FS)	≤0.2
Stability	≤0.25
Temperature Error- Zero (%FS/℃)	≤0.1
Temperature Error –Span (%FS)	≤0.02
Ambient temperature	-20℃~85℃
Power supply	12~36VDC (standard 24V)
Overload (%)	200
Life	>9 Millions pressure cycles
Load impedance (Ω)	≤750
Response time (ms)	≤1
Housing material	SUS304 or 316L
Measuring material	Compatible with 316L
Diaphragm material	316L or ceramic
Pressure port	Quick clamp
Protection	IP65
Weight	90g

Applications
1. Power system of petrochemical industry
2. Hydraulic / pneumatic system
3. Energy and water treatment system
4. Automation equipment
5. Industrial process control
