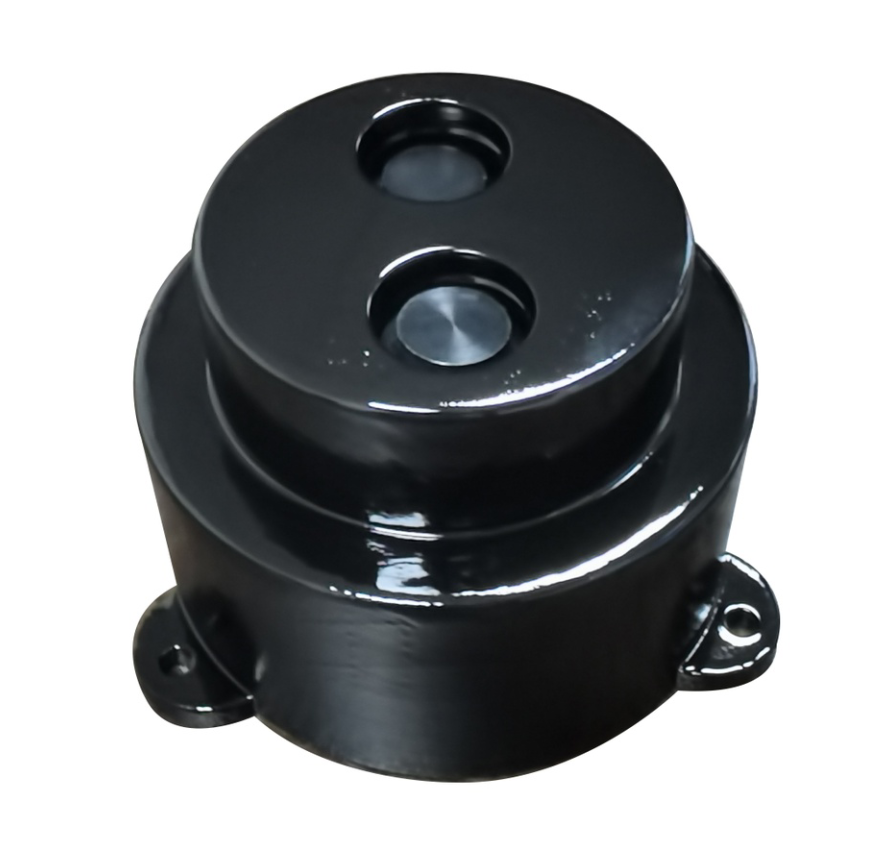

Wireless Ultrasonic Level/Distance Sensor

I. Introduction

Wireless ultrasonic level gauge/level gauge is a low-power and high-performance product with integrated IP68 protection level of ultrasonic sensor, wireless NBiot or LoraWan remote transmission, and large-capacity battery. It is widely used in municipal, water, and smart cities. , automation, etc.

II. System

The wireless ultrasonic distance/level system consists of: application objects, long-life wireless ultrasonic range finder, cloud management software, the key product is "low-power wireless ultrasonic sensor", cloud management software is a software customized product.

Low power consumption ultrasonic sensor

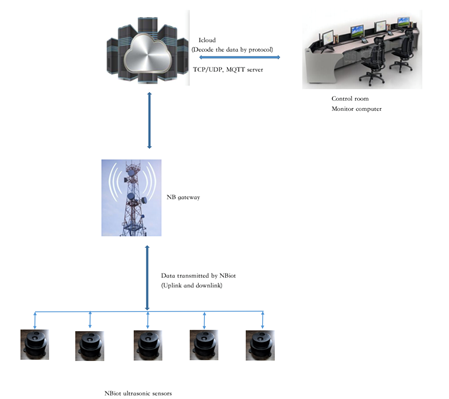

System diagram

III. Product review：

1. Ultrasonic ranging products provide reliable continuous level or distance measurement for water, liquid, glue or solid materials. These sensors are ideal for applications ranging from 3cm to 300cm.

2. The ultrasonic range finder can be easily connected to the control system electronically and mechanically, combined with the most advanced ultrasonic technology and processing algorithms, the design is reasonable and the complete system is integrated.

3. Ultrasonic sensor conforming to IP68 standard, the product conforms to RoHS.

4. Ultrasonic distance/level meters can also provide accurate non-contact measurements for applications such as factory automation, process control or tank level monitoring.

5. Ultrasonic rangefinders are powered by 3.6~5.5V DC battery or 9-30V DC, they use asynchronous UART TTL signal to communicate with customer's control system. Their power-on time is very short (less than 300ms), which allows system integrators to develop very low-power operation, where 3.6~5.5V DC is briefly applied to the sensor to obtain a distance measurement and then removed. This capability is especially important in battery powered installations. The sensor is protected against overvoltage and reverse polarity in both DC power and UART communication. Perform continuous temperature compensation for precise measurement accuracy.

6. Provides wireless communication with LoraWan or NBiot sensors (5 years battery life if data is transmitted every 2-3 hours).

7. Sensors stand out from others because of their user-friendly setup, versatile control options, field-proven reliability, and affordable cost.

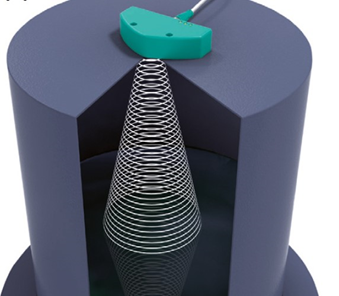

Measurements

IV. Characteristic

1. 3.6~5.5V or 9~36V power supply

2. Communication via Tx/Rx TTL or Bluetooth, LoraWan, NBiot, Wifi

3. Fast power-on response with level measurement, suitable for low-power systems

4. Plug and Play Setup

5. Temperature Compensation

6. Small blind spot

7. Tamper-proof and durable

8. IP68 enclosure protection class

9. Preservation of Accuracy in Harsh Environmental Conditions

V. Application

1. Measurement of water level, level/material level and distance

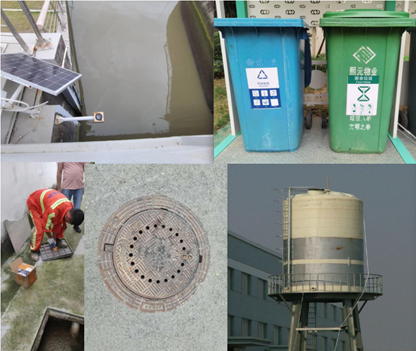

2. Smart city applications such as garbage bins, water wells, underground pipe networks, etc.

3. Bulk material management

4. Location detection

VI. Parameters

VII. Installation

Install it on the top cover (drill holes) or install it on the reverse side of the top cover with screws, try to install it in the middle of the tank to avoid sound waves hitting obstacles.
