Model

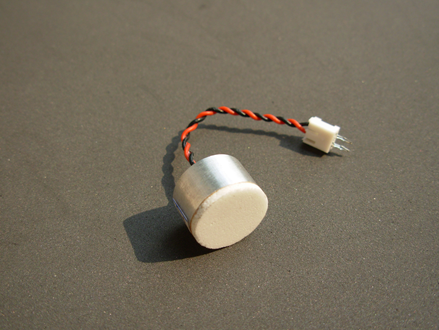

AD0300K1

Center frequency（kHz）

300KHZ±4%

Band width

24kHz

Overall sensitivity

0 dB=18 Vp-p；Pulses：50；Length：15cm

-66dB min

Measurement distance

0.08—0.6M

Blind zone

＜0.08M

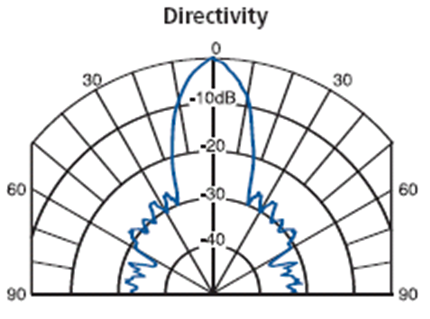

Beam angle （-3dB）

7±2°

Static capacity

250PF±20%

Minimum resistance

500Ω±30%

Max work voltage

＜300V

Work temperature

-20～80℃

Protection class

IP65

Housing materail

Aluminum alloy
