Technical data

General Specifications

Sensing distance: 30…2500mm
Adjustment range: 30…2500mm
Unusable area: 0…30mm
Standard target plate: 100mm×100mm
Transducer frequency: About 125 kHz
Response delay: About 85ms
Indicators/Operating means
LED yellow solid:
 flashing:
LED red flashing: fault or program function object not detected

Electrical specifications
Operating voltage UB
No-load supply current :≤30mA
Output
Resolution: 0.11mm at max.sensing range
Deviation of the characteristic curve: ±1% of full-scale value
Repeat accuracy: ±0.1% of full-scale value
Load impedance: >1k Ohm
Temperature influence: ±1.5% of full-scale value

Ambient conditions

Ambient temperature: -25…70℃
Storage temperature: -40…85℃

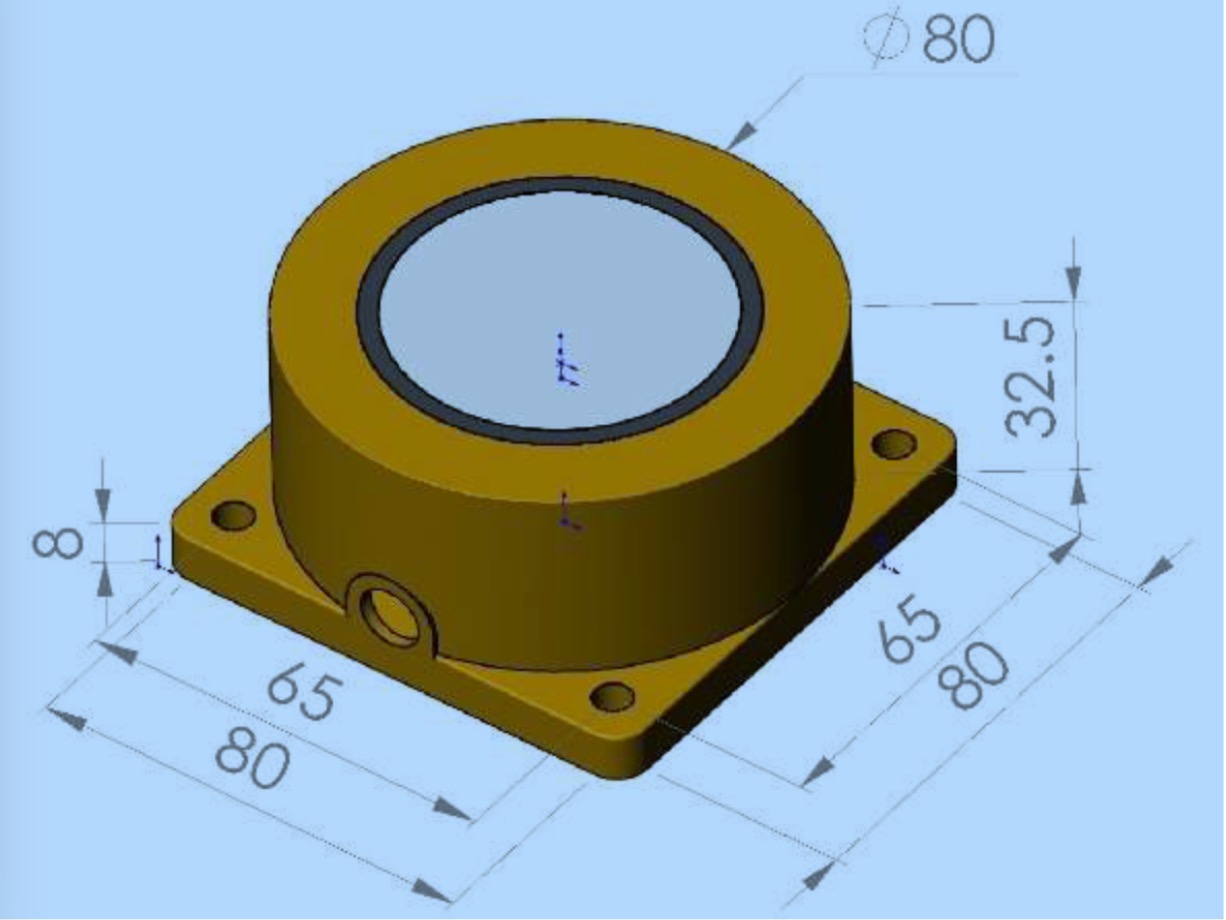

Mechanical specifications

Protection grade: IP678
Weight 600g

3.6v-5.5v battery powered, 4-5 years life

Output type: 433MHz/868MHz/915MHz/923MHz LoraWan; RS485, 4-20mA, 0-10V
