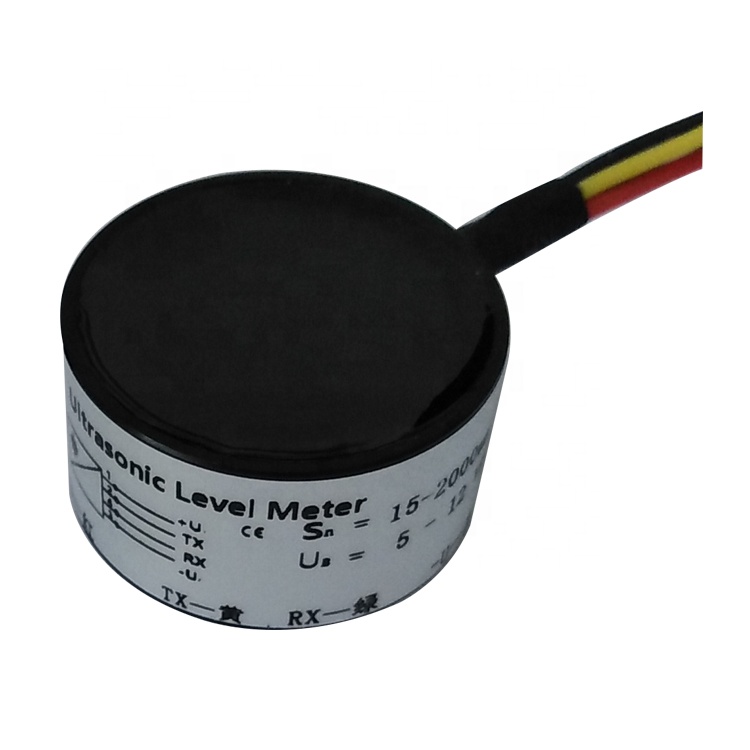

Place of Origin:Guangdong, China (Mainland)
Brand Name:Oneinch
Model Number:OIT-L02
Usage:Level Sensor
Theory:Ultrasonic Sensor
Output:Digital Sensor
Transducer frequency:1MHz
Measuring range:5cm-100cm
Blind zone:3-5cm
Accuracy:1%FS
Resolution:1mm
operating temperature:-20~60℃
Protection class:IP67
Voltage:DC12-48V
Tank thickness:≤5mm

 Features

1. Non-contact measurement, no need to change the shape of the container, no need to polish the surface paint layer of the container;
2. Metal casing, internal circuit potting treatment, rainproof design, suitable for outdoor environment; built-in powerful magnet, external waterproof adhesive, easy to install, fixed and firm;
3. Wide voltage operation, DC 12~48V power supply, suitable for all kinds of vehicles; RS232 output interface, compatible with various sensor signal connections; High-frequency ultrasonic testing, high solid penetration, suitable for containers of various materials such as metal and plastic
4. High stability measurement output, built-in anti-interference data processing model, intelligent filtering, compensation for environmental interference
5. High-precision measurement output, built-in high-precision calculation model, millimeter-scale measurement resolution
6. Together use with GPS to remote control and data read in real time with the communication of GPRS/3G/4G




Parameters

Applications

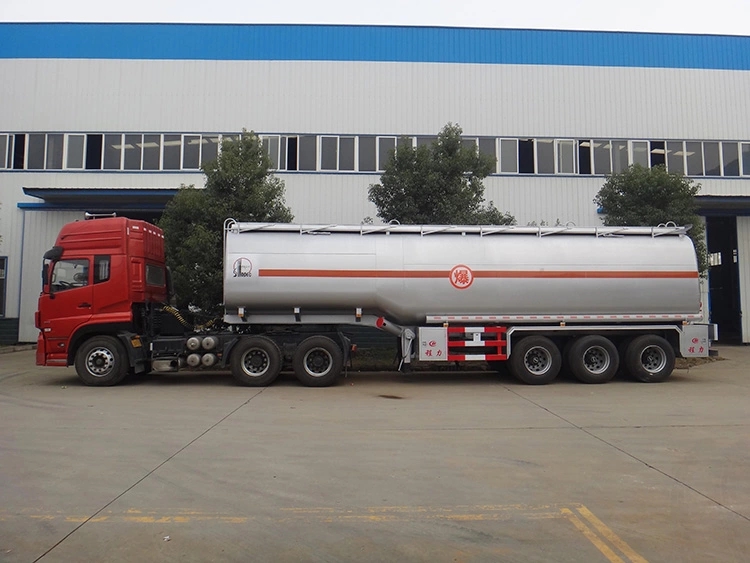

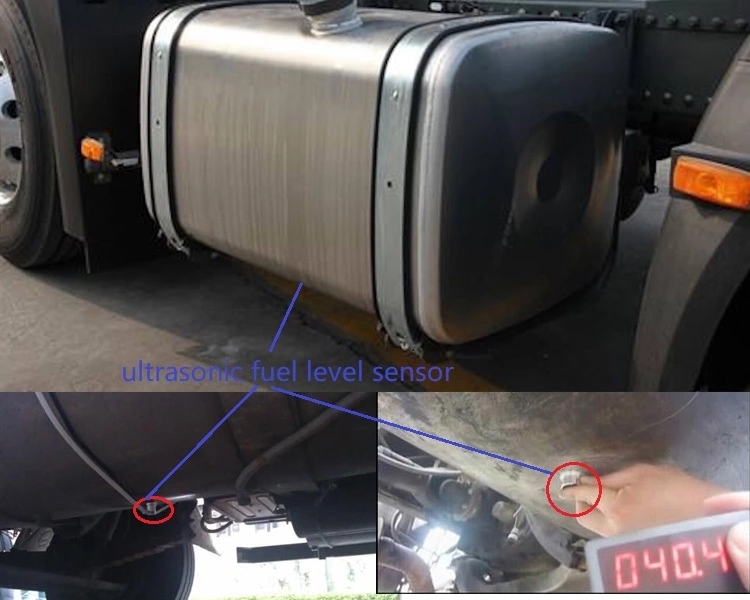

Vehicle fuel quantity monitoring
Liquid level measurement
Container water level monitoring
LPG measurement
Fuel theft detection
