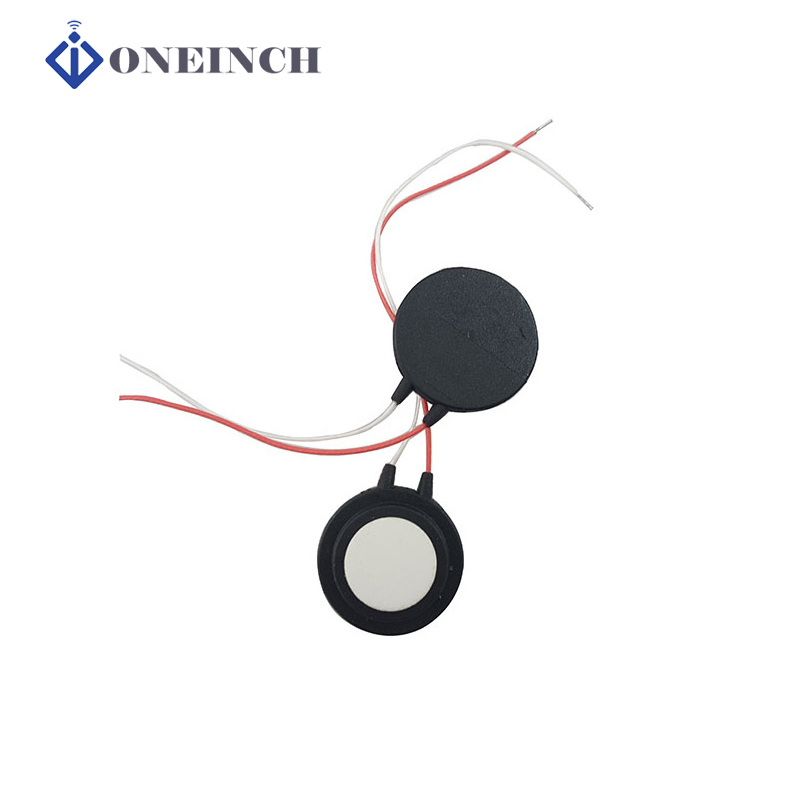

High sensitivity 200KHz gas meter gas flow meter ultrasonic transducer price

Centre working frequency (kHz)：500KHZ±4%
Bandwidth：±5°
overall sensitivity 0 dB=3 Vp-p; cycle:5; distance:6cm (transmitter and receiver)：>3V
Beam angle(-3dBfull angle)：5±1°
electrostatic capacity：300PF±20%
Minimal parallel impedance：200Ω±30%
Maxim operating voltage (Pulse  Duty cycle ratio  2%)：<500V
Operating temperature：-20~70℃
Protection class：IP65









Applications

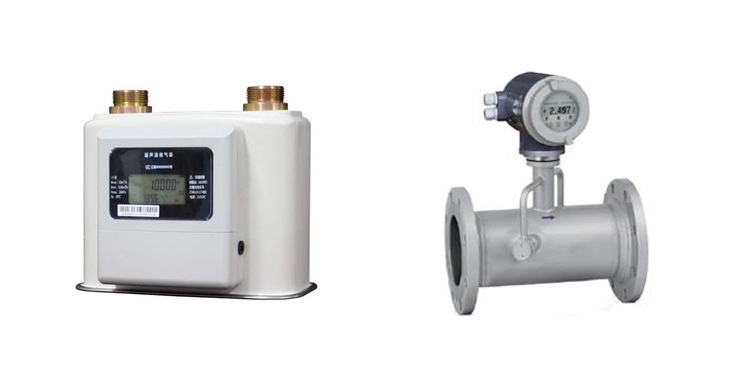

It is widely used for ultrasonic gas meters, gas flow meters
